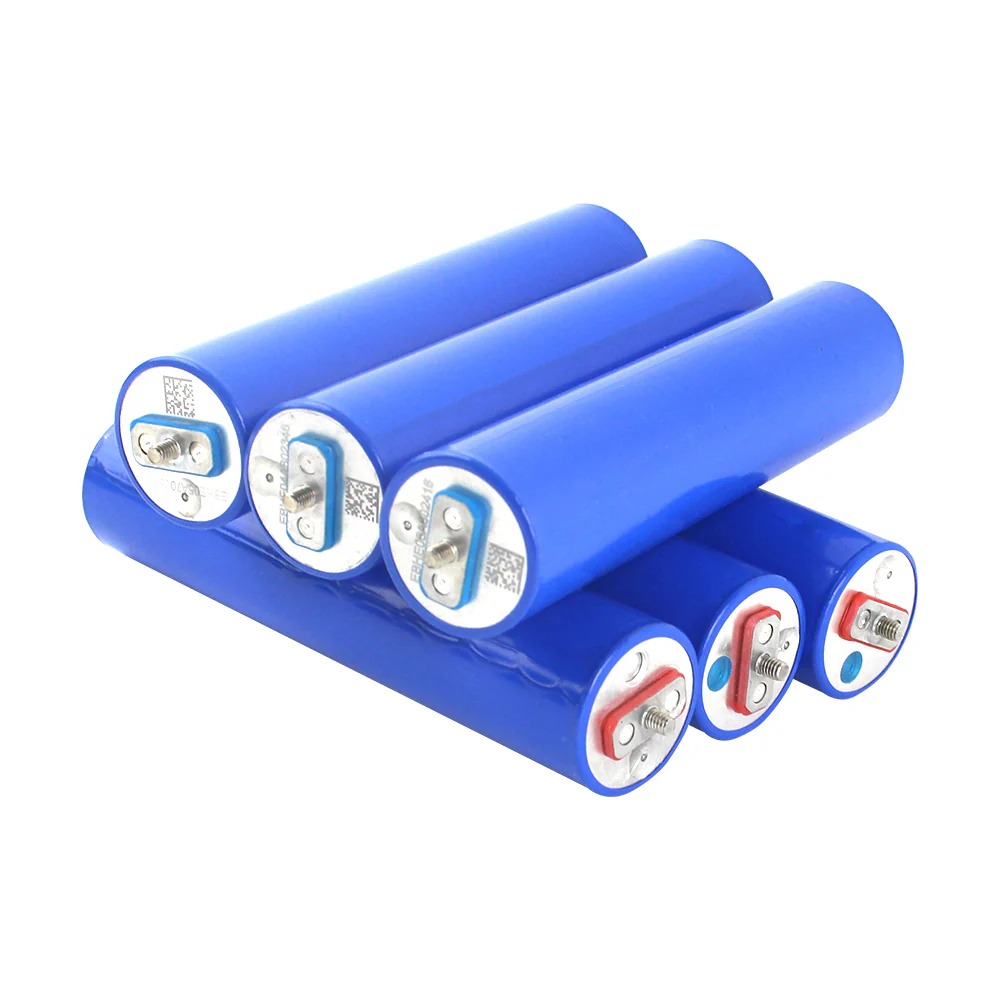

LTO Battery 2.3V 10Ah Rechargeable Lithium Titanate Cells 6 pcs
For DIY Battery 12V 24V 48V,Car Audio
$18.68
Out of stock
Lithium Titanate (LTO) 2.45V 12.5Ah Battery Product Introduction
I. Product Overview
This is a lithium titanate (LTO) battery cell with a nominal voltage of 2.45V and a standard capacity of 12.5Ah. It comes with free accessories including busbars, bolts, and M4 studs. Due to its small size, it is shipped by air (arriving in 13 - 15 days) instead of sea shipping. It is suitable for various application fields such as electric buses, electric forklifts, electric cars, etc., after professional safety performance tests. Bulk purchase opportunities with lower prices are available by contacting the supplier.
II. Product Parameters and Specifications
Parameter | Details |
|---|---|
Nominal Voltage | 2.45V |
Standard Capacity | 12.5Ah |
Size | 32.5*145mm |
Weight | 275±15g |
Charge Cut - off Voltage | 2.8V |
Discharge Cut - off Voltage | 1.5V |
Internal Resistance | ≤3.0mΩ |
Standard Charge Current | 1C |
Max Charge Current | 3C |
Max Peak Current (Charge, 30S) | 11C |
Standard Discharge Current | 1C |
Max. Discharge Current | 10C |
Max. Peak Discharge Current (30S) | 27C |
Temperature of Discharge | - 40~55℃ |
Cycle Life | 12000 + times |
III. Standard Configuration and Core Components
1. Core Components
LTO battery cell: The main power - storage unit, featuring a nominal voltage of 2.45V, 12.5Ah capacity, low internal resistance (≤3.0mΩ), and a cycle life of 12000 + times. It can operate in a wide discharge temperature range (- 40~55℃).
2. Standard Configuration

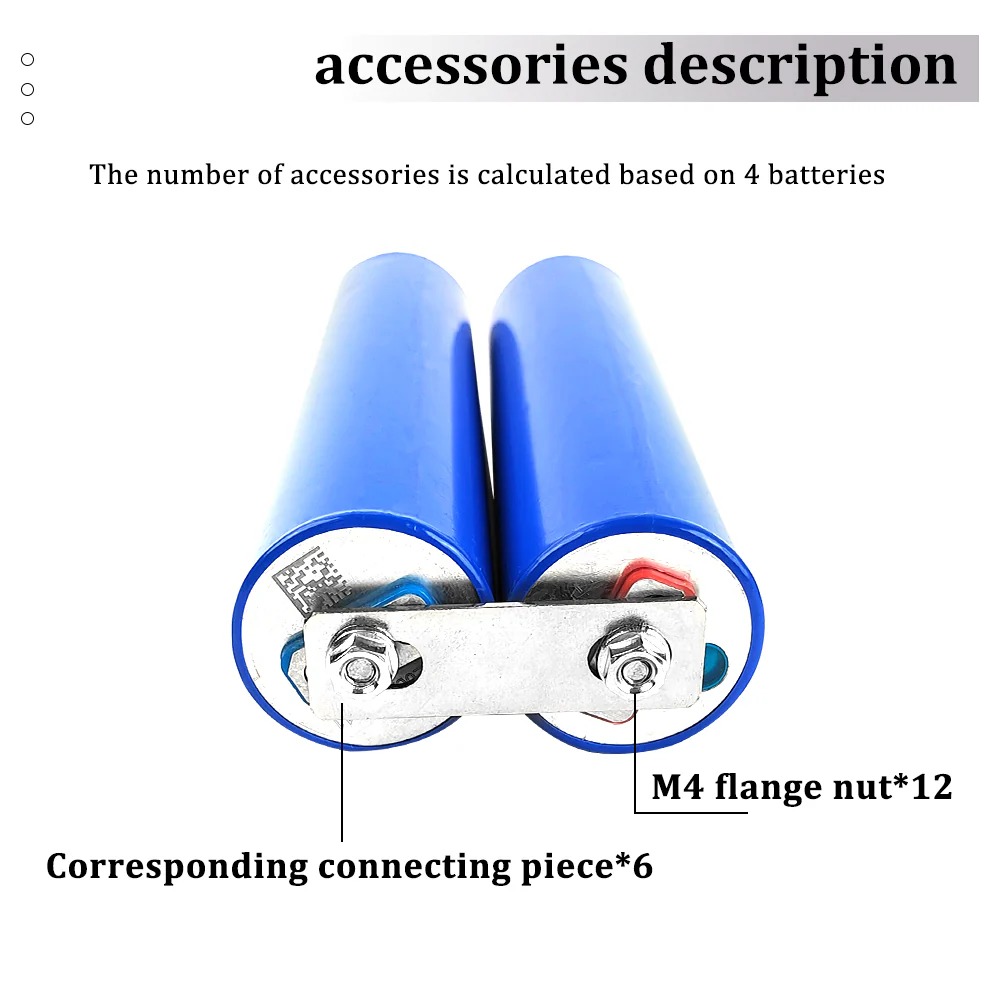

Accessories: Free busbar, bolts, and M4 studs, which are convenient for the assembly and connection of the battery cell.
IV. Product Advantages
1. Complete Accessories
Comes with free busbars, bolts, and M4 studs, reducing the need for additional purchases and simplifying the installation process.
2. Shipping Adaptability
Although not suitable for sea shipping due to small size, it is shipped by air, with a relatively short delivery time of 13 - 15 days, ensuring timely supply.
3. Electrical Performance
Sufficient Capacity and Voltage: 2.45V nominal voltage and 12.5Ah standard capacity can meet the power needs of many devices.
Low Internal Resistance: ≤3.0mΩ internal resistance ensures efficient charge and discharge, minimizing energy waste.
Strong Current - bearing Capacity: Supports multiple charge and discharge current levels, including 1C standard, 3C max charge, 11C max peak charge (30S), 1C standard discharge, 10C max discharge, and 27C max peak discharge (30S), enabling it to adapt to different working conditions.
4. Long Service Life
Over 12000 charge - discharge cycles, ensuring long - term use and reducing the total cost of ownership.
5. Wide Temperature Adaptability
Can discharge in a temperature range of - 40~55℃, suitable for use in various harsh environmental conditions.
6. Safety and Reliability
Has passed professional safety performance tests (over - discharge test, drop test, etc.), with no explosion, fire, or leakage in relevant tests, ensuring safe use.
7. Application Diversity
Applicable to multiple fields such as electric buses, electric forklifts, electric cars, steamships, patrol cars, RVs, home power reserves, and communication reserve power, showing strong adaptability.
8. Bulk Purchase Incentive
If purchased in larger quantities, lower prices can be obtained by contacting the supplier, providing cost - saving opportunities for bulk buyers.
