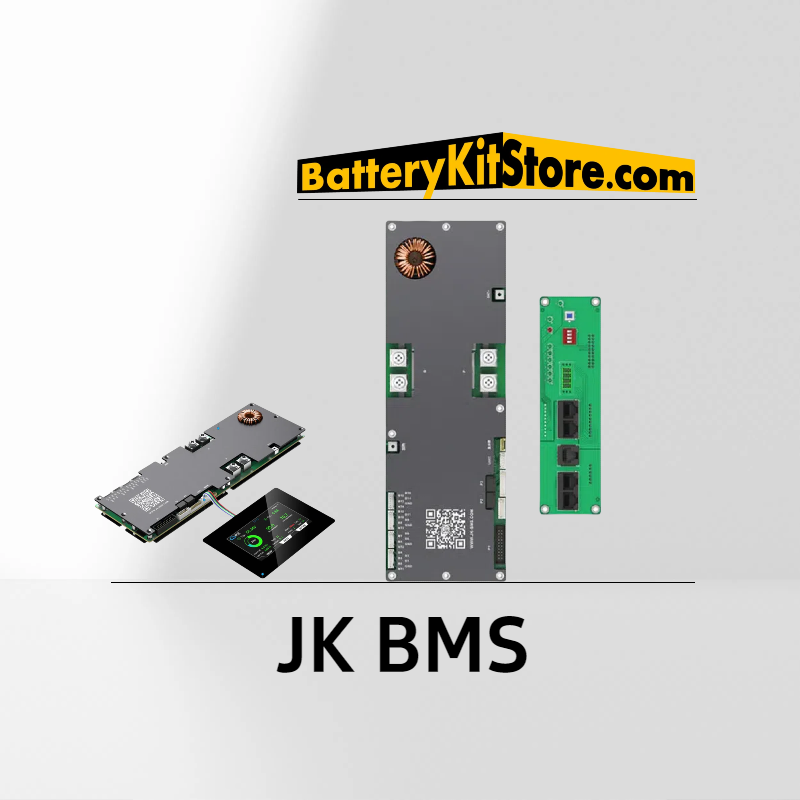

JK BMS V19 (JK-PB2A16S20P) 24V/48V with Smart Active Balancer
for LiFePO4, Li-Ion & LTO Batteries (8S/16S, 100A/150A/200A)
$184.40$123.99
I. Product Overview
Power your home energy storage or DIY battery projects with the JK BMS V19—an advanced smart battery management system designed for reliability, precision, and long-term performance. Equipped with active balancing technology and seamless connectivity, it is ideal for LiFePO4, Li-ion, and LTO batteries. Whether building a home backup power system or optimizing a renewable energy setup, it delivers balance, protection, and connectivity to keep batteries running at their best, backed by a proven patent and industry certifications.

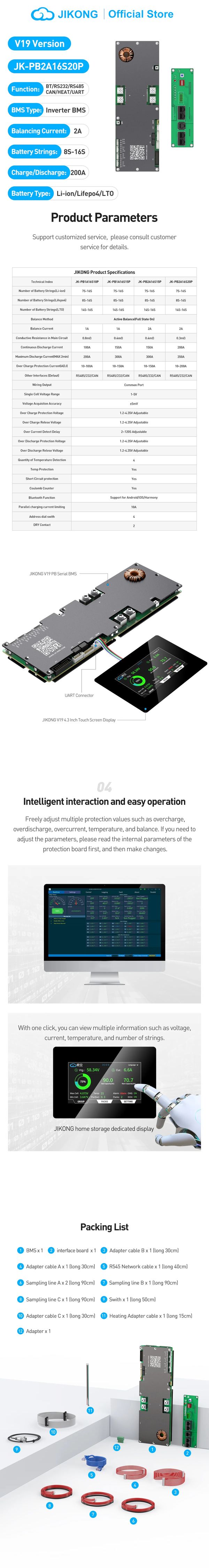

II. Product Parameters and Specifications
Feature | Details |
|---|---|
Model | JK BMS V19 |
Compatible Configurations | 8S (24V) and 16S (48V) |
Supported Battery Types | LiFePO4, Li-ion, LTO (lithium iron phosphate, ternary lithium, lithium titanate) |
Charging/Discharging Current | Up to 200A |
Balancing Current | 2A (scalable to 2-10A) |
Cell Voltage Measurement Range | 1V-5V |
Voltage Measurement Accuracy | ±5mV |
Connectivity | Bluetooth (compatible with Android and iOS) |
Protection Functions | Overcharging, over-discharging, overcurrent, short circuit protection |
Certifications | CE, FCC |
Port Design | Common charge/discharge port (simplifies installation) |
III. Standard Configuration and Core Components
Core Components
Active Balancing Module: Equipped with a patented active balancing system (patent No.: ZL 2019 2 0479589.6) that uses supercapacitors for real-time energy transfer, ensuring cell balance.
Smart Monitoring Hardware: Precision voltage detection components (±5mV accuracy) to measure individual cell voltages and track battery status.
Connectivity Module: Bluetooth chip for seamless sync with mobile apps (Android and iOS), enabling real-time data transmission.
Protection Circuitry: Built-in safeguards against overcharging, over-discharging, overcurrent, and short circuits to prevent battery damage.
IV. Product Advantages
1. Advanced Active Balancing
Patented Balancing Technology: Uses 2A active balancing current (scalable to 2-10A) and supercapacitors for real-time energy transfer between cells. This maintains battery consistency, extends runtime, and slows aging—maximizing battery lifespan.
2. Broad Compatibility
Multi-Configuration Support: Works with 8S (24V) and 16S (48V) setups, adapting to different battery pack designs.
Multi-Battery Compatibility: Supports LiFePO4, Li-ion, and LTO batteries (lithium iron phosphate, ternary lithium, lithium titanate), eliminating the need for multiple BMS units.
3. Powerful Performance & Easy Installation
High Current Handling: Manages up to 200A charging and discharging currents, suitable for high-demand setups (e.g., home energy storage, off-grid systems).
Simplified Setup: Common charge/discharge port reduces wiring complexity, making installation quicker and more convenient.
4. Comprehensive Protection
All-Round Safety: Safeguards batteries against overcharging, over-discharging, overcurrent, and short circuits—critical for preventing damage and ensuring user safety.

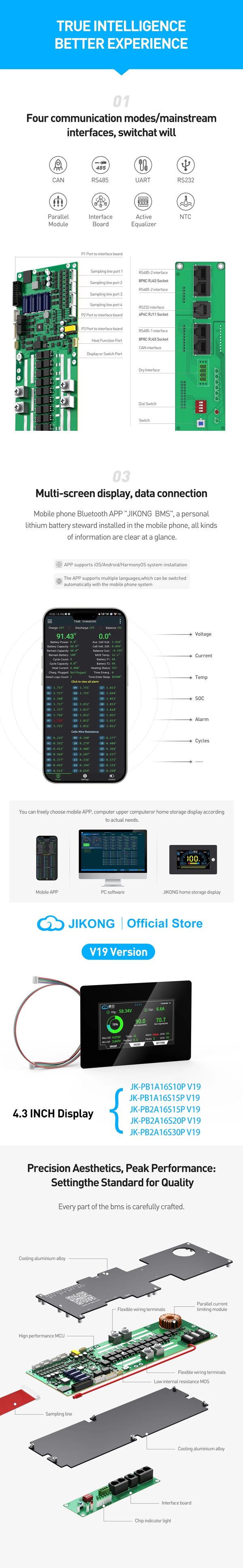

5. Precision Monitoring & Smart Connectivity
Accurate Data Tracking: Measures individual cell voltages with ±5mV accuracy, providing reliable data on balance status, voltage, and remaining capacity.
Mobile App Integration: Syncs with Android/iOS apps via Bluetooth to display real-time battery status, balance progress, and alerts—check stats anytime, anywhere.
6. Durability & Certification
Long-Lasting Design: Engineered for stable performance even with frequent use, ensuring durability in long-term applications.
Industry Certifications: CE and FCC certified, meeting international standards for safety and quality.
7. Versatile Applications
Ideal for home energy storage systems, off-grid setups, DIY battery packs, and 3C digital applications—where reliability, efficiency, and battery lifespan are key.
The JK BMS V19 combines active balancing technology, broad compatibility, and smart features to enhance battery performance and longevity. Backed by a patent and certifications, it is a trusted choice for both household and DIY energy projects.s
