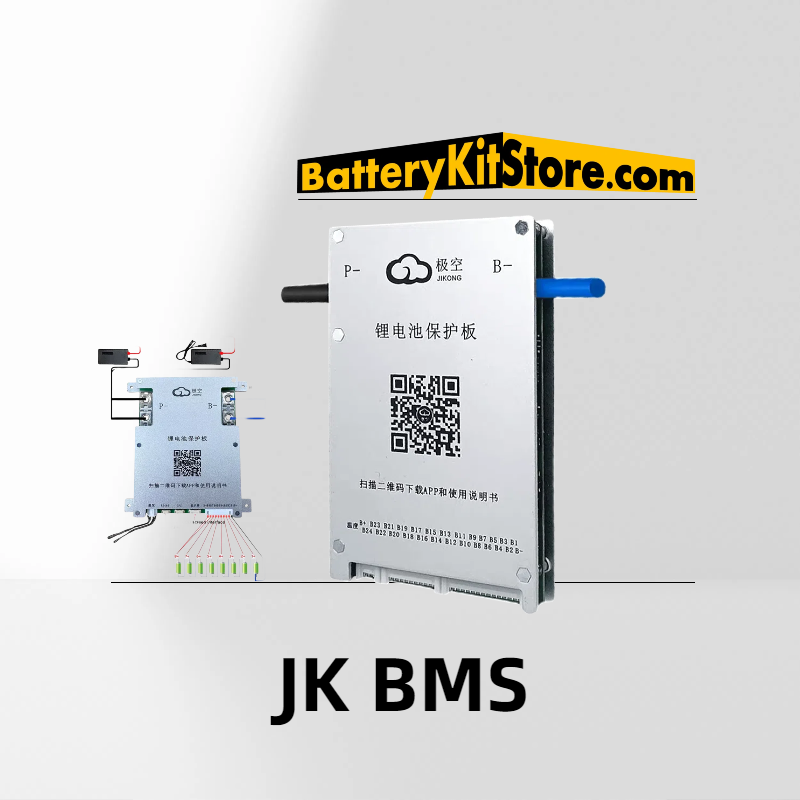

JK BMS with Smart 1A 2A Active Balancing and Bluetooth (8S-24S, 40A-500A)
For LiFePO4, LTO & Li-ion Batteries
$73.45$70.99
I. Product Overview
The JK BMS is a high-performance battery management system designed for LiFePO4, LTO, and Li-ion batteries. It is suitable for scenarios such as DIY energy storage systems, RV battery banks, and off-grid setups. Equipped with active balancing, smart protection, and seamless Bluetooth connectivity, it aims to maximize battery lifespan and efficiency. Additionally, tailored BMS solutions are available – users can contact to get a customized setup for their battery pack at the best price, with personalized quotes based on battery specs (cell type, series count, current needs). It has obtained CE certification, ensuring basic quality and safety compliance.
II. Product Parameters and Specifications
Parameter | Details |
|---|---|
Model Number | JK BMS |
Place of Origin | China |
Applicable Battery Types | LiFePO4, LTO, Li-ion |
Brand Name | JK |
Base Material | Aluminum |
Copper Thickness | 1mm |
Board Thickness | 17.8mm - 20.4mm |
Minimum Hole Size | <1mm |
Minimum Line Width | <1mm |
Minimum Line Spacing | <3mm |
Surface Finishing | Conformal coating |
Board Size | 135*83*17.6mm / 162*102*20mm |
Communication Methods | RS485, CAN bus, UART, Bluetooth (not for inverter) |
MOQ (Minimum Order Quantity) | 1pc |
Discharge Current | 40A, 60A, 80A, 100A, 150A, 200A (supports up to 500A for high-power systems) |
Voltage Range | 24V - 96V |
App Support | YES |
Certification | CE |
Material | Aluminum |
Customization | YES |
Supported Configurations | 8S - 24S battery packs |
Cell Voltage Measurement Range | 1V - 5V (with ±5mV accuracy) |
III. Standard Configuration and Core Components
(Note: The original content does not explicitly list all standard configuration details. The following is a summary based on functional descriptions and basic product attributes.)
Core components and implied configurations include:
1 x JK BMS main unit (built with aluminum base material and three-layer anti-coating surface finishing)
Bluetooth module (for connectivity with mobile app)
Related internal components for active balancing, precision monitoring (coulomb meter, voltage sensors), and protection functions
IV. Product Advantages
Efficient Energy Management with Active Balancing
Unlike passive balancers, the active balancing technology transfers energy between cells to eliminate voltage differences without wasting capacity. This boosts battery usage efficiency to 95%, extending the battery pack’s runtime and overall lifespan.Comprehensive Safety Protection
Equipped with multi-layer safeguards against overcharging, over-discharging, over-current, short circuits, and over-temperature. These protections are critical for preventing battery damage and ensuring safe operation in various scenarios.Precision Monitoring and Clear Power Status
Measures individual cell voltages (1V - 5V) with ±5mV accuracy, ensuring accurate cell performance tracking.
Features a built-in coulomb meter that displays real-time remaining capacity, eliminating guesswork about remaining power.
Convenient Connectivity and Remote Control
Supports Bluetooth connectivity, which syncs with a mobile app to show live battery status (voltage, current, temperature, balance progress). This allows users to check stats anytime and anywhere via their phones. Additionally, it offers RS485, CANbus, and UART communication for flexible monitoring options.Wide Compatibility for Versatile Use
Supports 8S - 24S battery configurations (24V - 96V) and discharge currents from 40A to 500A, making it suitable for both small-scale DIY projects and high-power systems (e.g., RV battery banks, off-grid setups).Customization and Accessibility
Offers customization services to tailor solutions for specific battery packs, meeting personalized needs.
Low MOQ (1pc) allows individual users or small-scale projects to purchase easily.
CE certification ensures compliance with relevant quality and safety standards.
