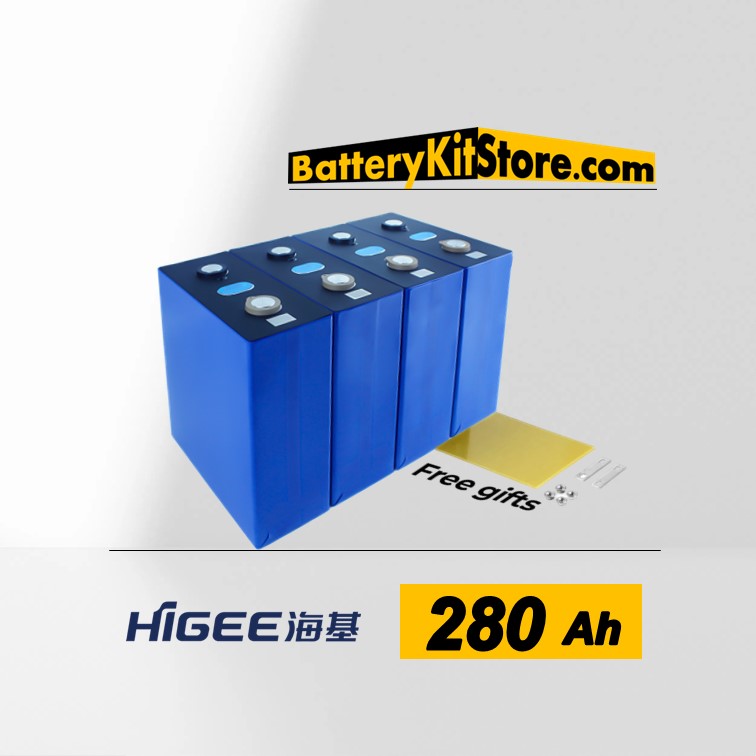

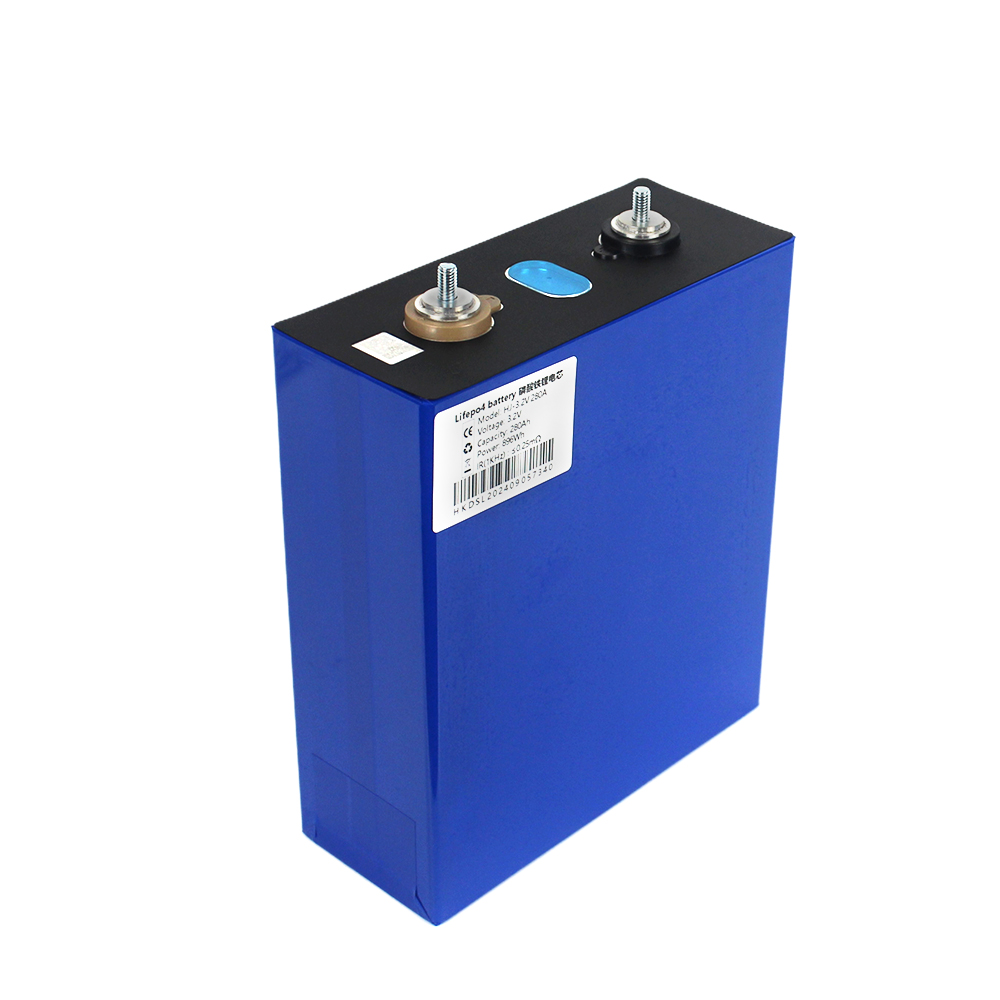

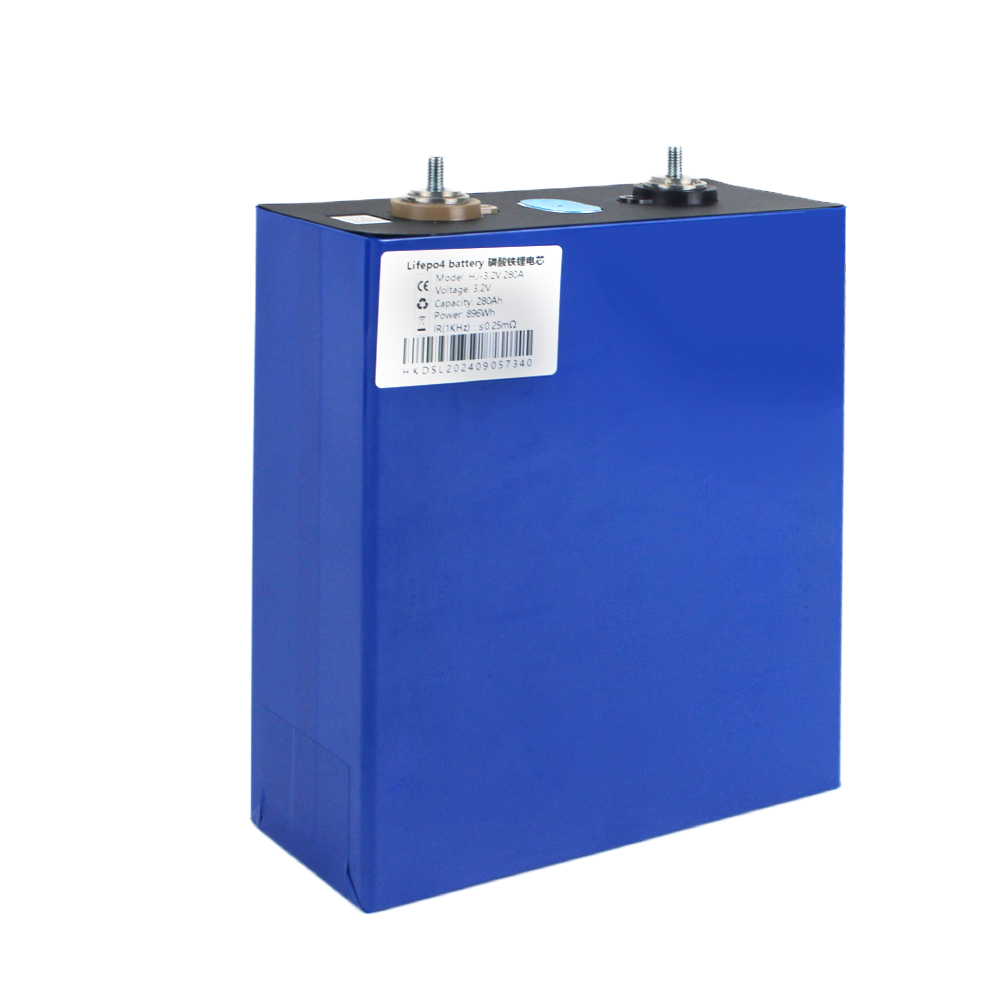

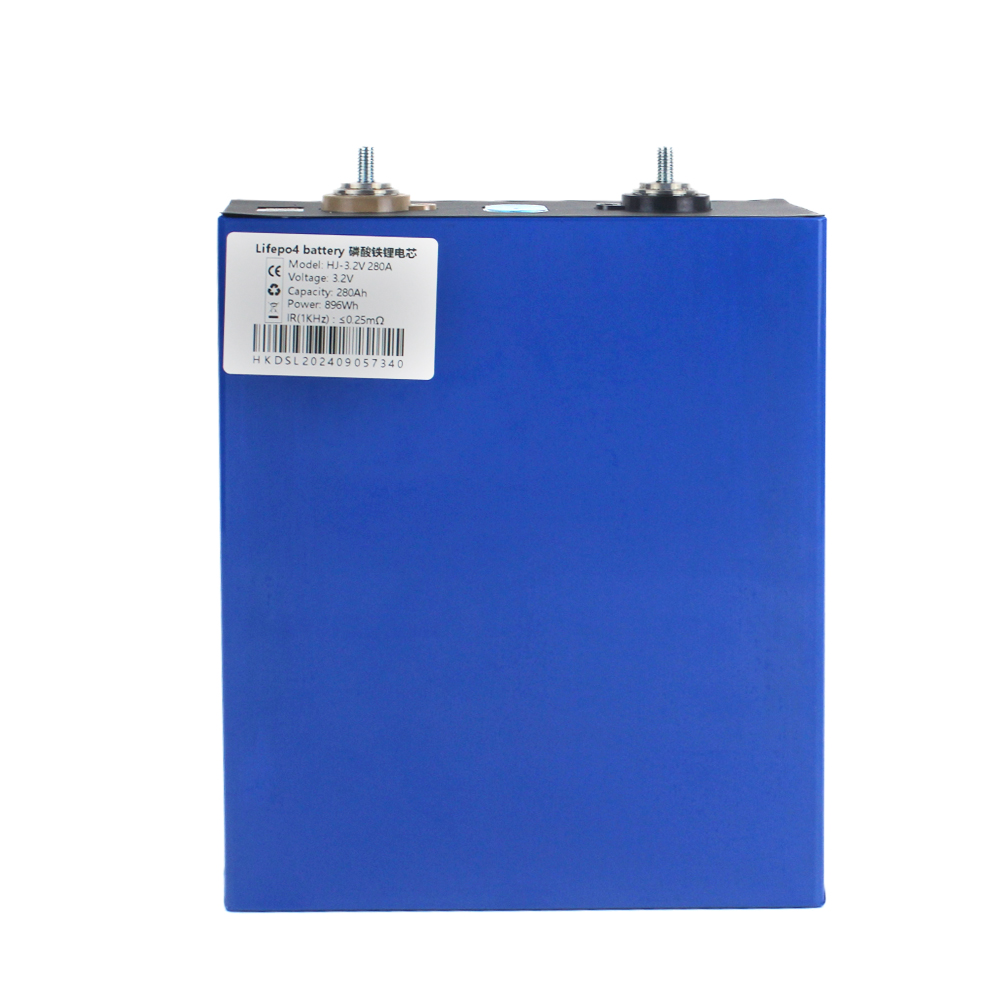

HIGEE LFP71173205E LiFePO4 3.2V 280Ah Battery Cells
Brand New 6000+ Cycle Life For 14.3kWh Solar Energy 12V 24V 48V battery Pack
$241.33
I. Product Overview
The HIGEE LFP71173205E 3.2 V 280 Ah cell is a single-block powerhouse built for DIYers who refuse to compromise.
One cell stores 896Wh of usable energy—enough to run a 30W LED camp light for 30 straight hours, or a 1kW e-bike hub motor for 50km at 70% throttle.
Thanks to LiFePO₄ chemistry you get 6,000+ cycles (15-year calendar life) with zero maintenance, zero memory effect and zero fire risk.
At only 5.5 kg it replaces three conventional AGM batteries while freeing up two-thirds of the weight and volume in your boat, RV, forklift or off-grid cabin.
Every cell leaves our warehouse with a verified QR-code birth sheet: voltage and internal-resistance matched within ±2mV and ±0.02mΩ—so you can build a balanced pack straight out of the box.
II. Product Parameters and Specifications
Battery Model: HIGEE LFP71173205E
Nominal Voltage: 3.2 V
Nominal Capacity: 280 Ah
Nominal Energy: 896 Wh
Energy Density: 162.9 Wh/kg
Charge Voltage: 3.65 V ±0.05 V
Discharge Cut-off: 2.0 V (safe ceiling 2.5 V)
Max. Continuous Charge Current: 1 C (280 A)
Max. Continuous Discharge Current: 1 C (280 A)
Peak Discharge (10 s): 3 C (840 A)
Internal Resistance: ≤0.2 mΩ (1 kHz AC)
Cycle Life: ≥6,000 cycles @ 25 ℃, 0.5 C, 80 % DOD
Calendar Life: 15 years
Operating Temperature
Charge: 0℃ – 50℃
Discharge: –20℃ – 55 ℃
Storage: –30 \℃ – 45℃ (50% SOC recommended)
Dimensions: 174.3 × 71.8 × 205 mm (L×W×H)
Weight: ≈5.50 kg ±0.1 kg
Terminal: M6 threaded aluminum post (nickel-plated copper busbars included)
Warranty: 5 years, store-backed by BatteryKitStore.com
III. Standard Configuration and Core Components
What ships in the box: 1× HIGEE 3.2 V 280 Ah prismatic cell, vacuum-sealed & insulated
2× M6 nickel-plated copper busbars (2 mm thick, laser-cut)
4× M6 flange serrated nuts + insulating caps
1× QC card with matched voltage & IR readings (QR traceable)
Optional kit upgrades (add before checkout):
4S/8S/16S BMS 100 A – 500 A with low-temp cut-off
ABS cell spacers & fire-retardant holders for clean 19-inch rack builds
4 AWG silicone cables pre-crimped with 8 mm lugs
Heavy-duty plywood or steel battery boxes, foam-lined
IV. Product Advantages
6,000+ Cycles, 15-Year Life
Outlasts lead-acid by 5× and retains ≥80 % capacity after 6,000 deep cycles—save money after year 3.Feather-Light Energy
162.9 Wh/kg means 200 kg saved on a typical 48V 280Ah bank—more payload for cargo, passengers or gear.Certified Safe
Passes nail penetration, crush, over-charge, short-circuit, drop, seawater immersion and 130 °C thermal abuse tests—no fire, no explosion, no toxic liquid.True 1C Continuous & 3C Pulse
Run high-draw inverters, winches, induction cooktops or forklift motors without voltage sag below 3.0V per cell.Arctic to Desert Ready
Discharges at –20℃, charges at 0℃+, stores at –30℃—ideal for winter ice-fishing huts or Arizona solar sheds.Ready-to-Build Matching
Cells are pre-graded within ±2 mV and ±0.02 mΩ—skip the week-long top-balance ritual and assemble your pack today.5-Year Store Warranty & Local Stock
Shipped same day from BatteryKitStore.com warehouses in the US & EU, with live-chat tech support and 30-day no-hassle returns.
Build lighter, last longer, go further—add the HIGEE LFP71173205E 3.2V 280Ah cell to your cart and power your next adventure with lithium that simply works.
Order Tracking
We will send you the invoice and shipping information via email.
Lead time: Lead time depends on whether the item is in stock at our warehouse outside of China. We’ll follow up with the shortest lead time we can secure for you.
Freight time when shipped from China:
Europe: 7-30 days
Africa: 25-40 days
Asia: 6-20 days
North America: 7-25 days
South America: 30-90 days
Australia: 20-30 days
Our services
Extra quality, proven compatibility and on-time delivery.
Extended Warranty
Need confidence in quality?
We are direct distributor of the manufacturers, and are able to provide a longer warranty period by extra quality control processes.
One Stop Solution
Feeling a headache for components compatibility? Our all-in-one battery kit saves your time!
Plus, we offer DDP shipping terms, you don't need to worry about import tax!
Too much time waiting for your battery kit to arrive? Our battery kits might be in stock next street!
Address: Julianowska 37-D2, 05-500 Piaseczno Poland
On-time Fulfillment
Here's what our customers say
“Took delivery of 2,000 pcs EVE 15Ah last week—every pallet spot-on 3.29 V, 0.3 mΩ IR matched within spec. QC spot-check passed 100 %. Already pre-sold 1,200 to our OEM scooter guys; zero returns so far. Re-ordering 5,000 next quarter—solid margin, reliable supply.”
- Mike O’Donnell
“Every day, they strive to improve their service to the clients by developing the right blend of technology and creativity to make sure every job done is done as efficiently as possible.”
- Brian Moten
Frequently asked questions
What is BatteryKitStore.com?
BatteryKitStore.com is a market place for battery DIY lovers to shop for the battery kits they need. We are passionate about new energy solutions.
How does your product/service work?
We offer battery kits products that helps DIY lovers to get their work done, including the materials such as BMS, battery cells, housing structures, fixtures, etc., and we also offer the tools they need such as the testing equipment or the measurement tools. We try to keep our process as neat as possible for you.
How much does it cost?
Our pricing varies depending on the quantity you buy, the inventory location and the upper stream price fluctuation. We offer a variety of options to fit your needs and budget. Please contact us for more information.
Do you offer cash on delivery?
Unfortunately, we don't currently offer cash on delivery. However, we do offer paypal which might be helpful.
How can I contact you?
You can reach us by Email: support@batterykitstore.com. We are always happy to answer your questions.
What does your extended warranty cover?
Extended warranty starts from the date of successful delivery. It covers manufacturing defects in new battery cells only.
How do you assure the quality?
Before shipping, we thoroughly test each cell for voltage, resistance, and appearance to ensure proper function.
How to inspect the battery kits after delivery?
Test your cells within 7 days of arrival. If any issues are found, contact us immediately for a refund or replacement.
Who should buy these battery kits?
These battery kits are for experienced DIY users only. If you’re not familiar with lithium battery safety, we recommend purchasing a pre-assembled battery pack instead.
Is voltage balancing required before assembly?
Yes, battery cells must be balanced (same voltage) before assembly. Do NOT Mix Cells!
o Use same brand & capacity cells in your battery pack.
o Mixing different brands/capacities/voltage voids warranty.
What should I be aware of when using the BMS?
Use the Correct BMS (Battery Management System) and assemble it correctly according to the instructions.
Incorrect BMS wiring, Missing BMS, Charger failures due to assembly errors voids warranty.
