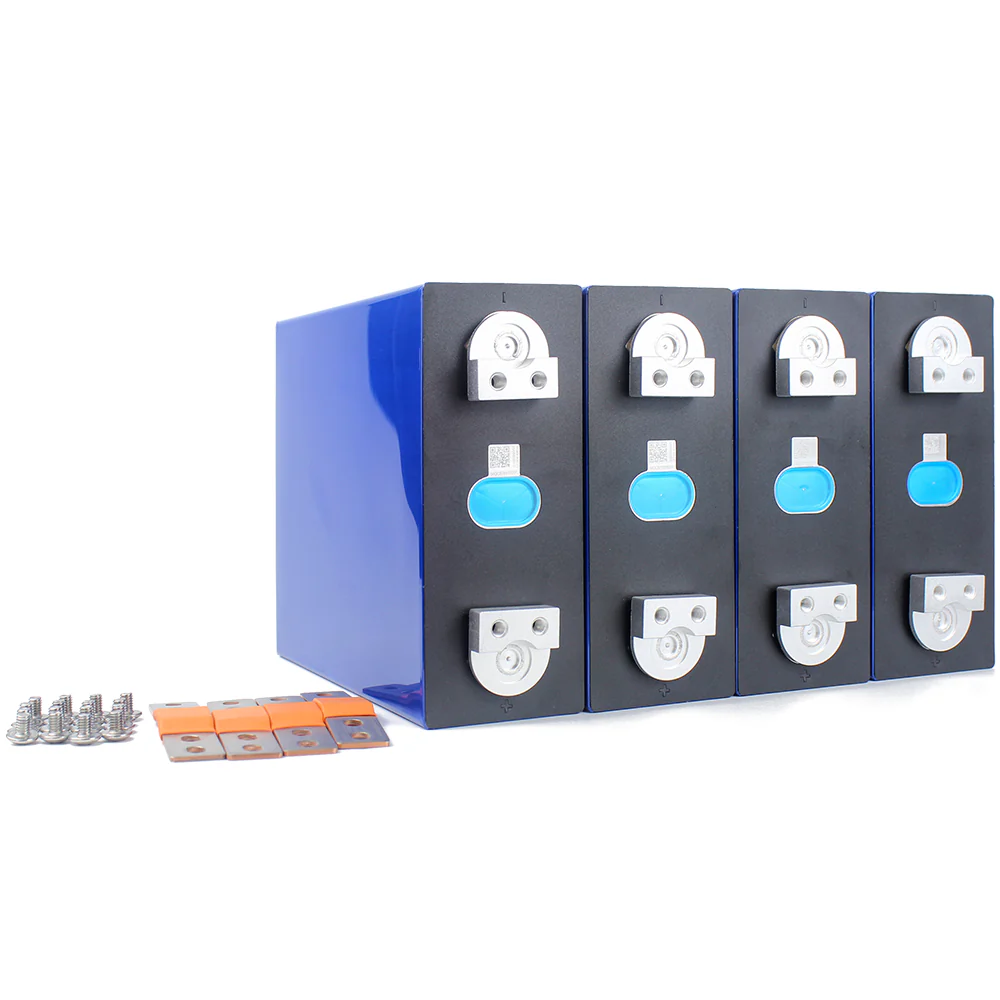

EVE LF334 334Ah LiFePO4 Battery Cell with Original Studs
High-Capacity, Reliable Power for Energy Storage & DIY Projects - 4pcs | BatteryKitStore.com
$369.99
I. Product Overview
The EVE LF334 334Ah LiFePO4 Prismatic Battery Cell is a brand new Grade A high-capacity lithium iron phosphate cell manufactured by EVE Energy. Designed for demanding energy storage applications, this cell delivers exceptional performance with a nominal capacity of 334Ah (tested up to 350Ah+) and energy output exceeding 1075.48Wh.
Each cell features a unique QR code for complete traceability and comes with an official EVE test data report. To facilitate easy assembly, all batteries are pre-welded with M6 terminals and include comprehensive connection accessories.
Key Highlights:
100% authentic Grade A cell with clear QR code traceability
Ultra-long cycle life of 6000-8000 cycles
High energy density with low internal resistance (≤1.2mΩ)
Pre-welded M6 terminals for convenient DIY assembly
Official EVE partner product with authorization certificate
II. Product Parameters and Specifications
Basic Specifications
Manufacturer | EVE Energy |
Model | EVE LF334 |
Chemistry | LiFePO4 (Lithium Iron Phosphate) |
Nominal Voltage | 3.2V |
Nominal Capacity | 334Ah (Tested: 350Ah+) |
Nominal Energy | ≥1075.48Wh |
AC Impedance Resistance | 0.18mΩ ± 0.05mΩ |
DC Resistance (DCR) | ≤1.2mΩ |
Cycle Life | ≥6000 cycles (up to 8000 cycles) |
Dimensions (L×W×H) | 207.2 × 71.7 × 173.7mm |
Weight | 5.52kg ± 0.166kg |
Terminal Type | M6 stud holes |
Certifications | MSDS, UN38.3, CE |
Warranty | 5 Years |
Electrical Performance
Parameter | Charge | Discharge |
|---|---|---|
Standard Current | 1C (167A) | 2C |
Maximum Instantaneous Current | 2C | 3C |
Cut-off Voltage | 3.65V | 2.5V |
Recommended SOC Window | 10% ~ 90% |
Temperature Ranges
Condition | Temperature |
|---|---|
Charging | 0℃ ~ 60℃ |
Discharging | -30℃ ~ 60℃ |
Short-term Storage (<1 month) | -20℃ ~ 45℃ |
Long-term Storage (<1 year) | 0℃ ~ 35℃ |
III. Standard Configuration and Core Components
Battery Cell Features
Component | Description |
|---|---|
Positive Electrode | High-grade aluminum terminal with M6 stud |
Negative Electrode | High-grade aluminum terminal with M6 stud |
QR Code | Laser-etched for full traceability (includes cell ID: F820005818, LF334 1075Wh) |
Explosion-proof Valve | Built-in safety pressure relief mechanism |
Stud Dimensions | 35mm × 16mm × 10mm (8mm/6mm compatible) |

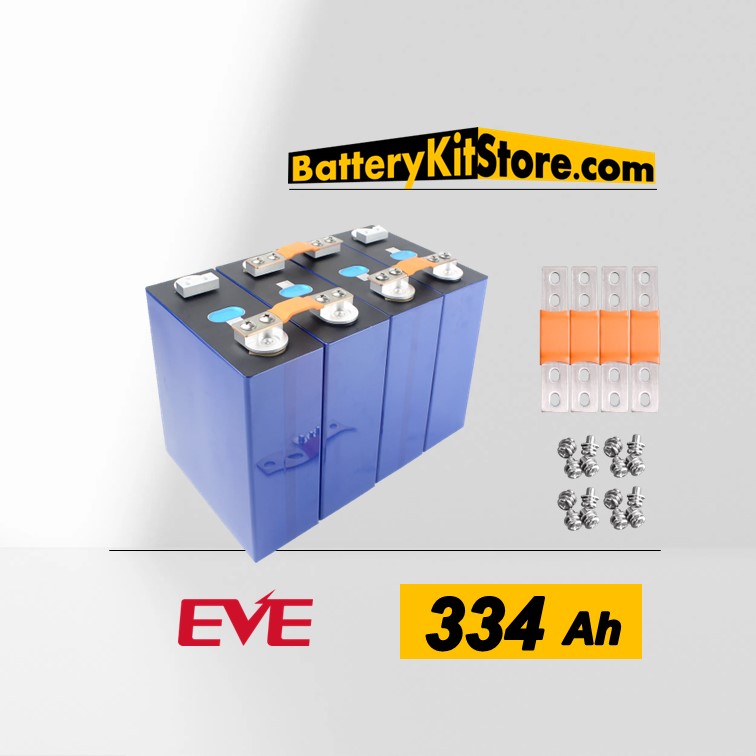

Accessories Included (Per 4-cell set)
Item | Quantity | Function |
|---|---|---|
Battery Cells with Stud Holes | 4 units | Core power storage units |
Original Factory Studs | 8 pieces | Terminal connection points |
Copper Busbar Connectors | 4 pieces | Series/parallel cell connections |
M6 Flange Nuts | 16 pieces | Secure mounting hardware |
Epoxy Boards | Included | Insulation and protection |
Packaging Configuration
Inner Packaging: Custom foam insert securing 4 cells
Outer Packaging: Reinforced cardboard carton
Accessory Kit: Pre-packed with nuts, busbars, and documentation
Protection: Anti-vibration foam padding for safe transport
IV. Product Advantages
1. Superior Performance & Longevity
Advantage | Details |
|---|---|
Extended Cycle Life | 6000-8000 cycles vs. ~300 for lead-acid (26× longer) |
High Energy Output | 1075.48Wh nominal capacity with tested 350Ah+ real capacity |
Low Resistance | 0.18mΩ AC impedance ensures minimal energy loss |
15-Year Lifespan | Outlasts lead-acid batteries by 5× |
2. Cost Efficiency
Metric | LiFePO4 | Lead-Acid |
|---|---|---|
Cost Per Cycle | $0.3 | $0.7 |
Total Ownership Cost | 57% lower over product lifetime | Higher replacement frequency |
Weight Efficiency | 1/3 the weight (5.52kg vs. ~16kg equivalent) | 3× heavier for same capacity |
3. Safety & Reliability
Thermal Stability: LiFePO4 chemistry will not catch fire or explode
Built-in Protection: Explosion-proof valve prevents over-pressure situations
Quality Verified: 100% pre-shipment testing (voltage, resistance, appearance)
Traceability: Every cell has unique QR code linked to EVE factory test data
4. Convenience & Compatibility
Pre-welded Terminals: M6 studs ready for immediate assembly
Complete Kit: All necessary connection hardware included
Flexible Configuration: Suitable for 12V, 24V, 48V systems and beyond
Wide Temperature Range: Operates from -30℃ to 60℃
5. Authenticity Guarantee
Verification | Proof |
|---|---|
Official Partnership | HAKADI is authorized EVE distributor with certificate |
Factory Testing | Each cell includes EVE Battery Company test report |
QR Code Traceability | Scan to verify authenticity and production data |
Grade A Quality | 100% brand new cells (no refurbished or B-grade products) |
6. Service Support
5-Year Warranty: Comprehensive coverage from date of receipt
EU Warehouse: Polish warehouse location for fast European delivery
Pre-Sale Testing: Voltage, resistance, and appearance inspection before shipment
7-Day Arrival Check: Test window provided with refund/replacement support
