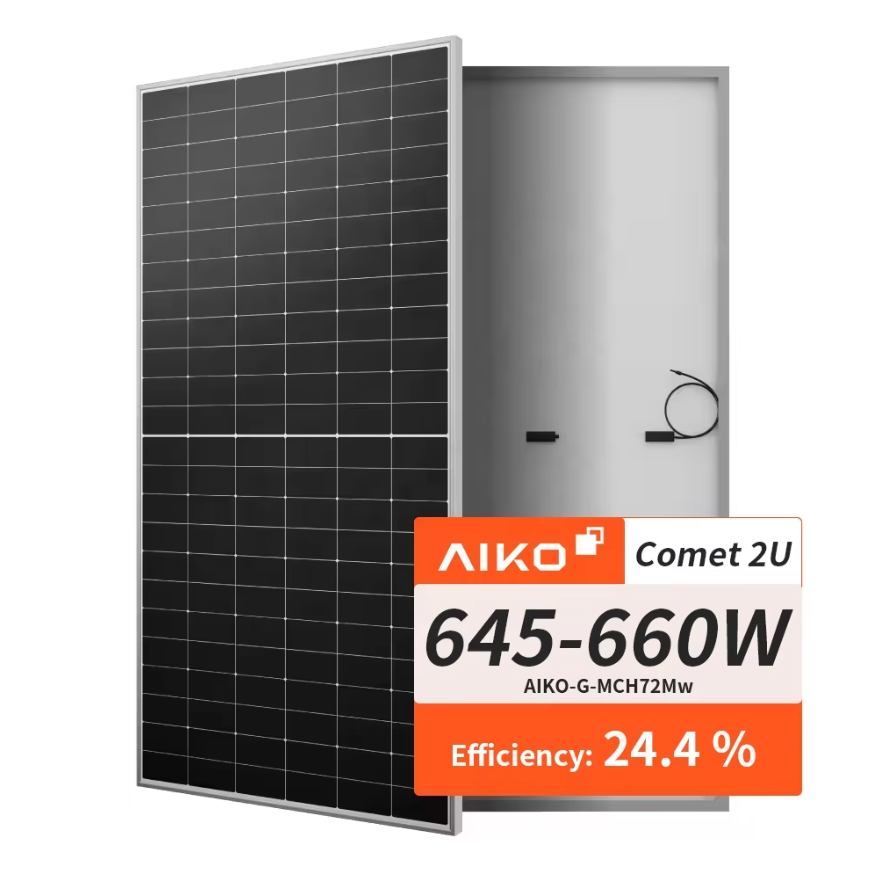

Aiko Solar N Type ABC 660W 655W 650W 645W Monocrystalline Photovoltaic Module Panel
High Efficiency Solar for Commercial Use and for Replacement of LONGi LR7-72HVH-650M
$94889.99
I. Product Overview
The AIKO Comet-2U represents the pinnacle of next-generation solar technology, powered by the innovative N-type All Back Contact (ABC) cell architecture. This revolutionary design eliminates front-side grid lines, enabling industry-leading power output, exceptional efficiency, and superior aesthetics. Designed for versatile applications across industrial, commercial, and residential settings, it seamlessly adapts to diverse energy needs—from powering homes to supporting large-scale commercial operations. The Comet-2U delivers maximum energy yield, lower system costs, and a sleek, all-black appearance, making it the ideal choice for discerning customers seeking the best in solar performance and design.
II. Product Parameters and Specifications
表格
Parameter | Specification |
|---|---|
Power Range | 640W - 670W |
Maximum Efficiency | Up to 24.4% |
Peak Output | Up to 660W |
Cell Technology | N-type ABC (All Back Contact) with half-cell technology |
Cell Size | 182mm x 182mm |
Number of Cells | 72 cells |
Module Dimensions (LxWxH) | 2382mm x 1134mm x 30mm |
Weight | 27.1 kg |
Temperature Coefficient (Pmax) | -0.26%/°C |
Maximum System Voltage | 1500V DC (IEC) / 1000V DC (UL) |
Warranty | 30-year Linear Performance Warranty |
III. Standard Configuration and Core Components
Solar Cells: High-efficiency N-type monocrystalline ABC cells with a passivated emitter and rear contact design, paired with half-cell technology for enhanced performance under partial shading.
Glass: High-transmission, low-iron tempered glass with anti-reflective coating for maximum light absorption.
Encapsulant: High-quality EVA (Ethylene Vinyl Acetate) for excellent adhesion and protection against environmental factors.
Backsheet: Premium, weather-resistant backsheet for durability and electrical insulation.
Frame: Corrosion-resistant aluminum alloy frame with excellent mechanical strength, designed for easy installation, grounding, and durable performance in harsh outdoor environments.
Junction Box: IP68 rated junction box with bypass diodes to minimize power loss due to shading and ensure reliable performance.
Certifications: Fully certified to CE, TÜV, and UL standards, ensuring compliance with rigorous international safety and quality benchmarks for reliable long-term use.
IV. Product Advantages
Unmatched Power and Efficiency: Leveraging ABC and half-cell technology, the Comet-2U achieves up to 660W power output and 24.4% efficiency, generating ~20% more energy than conventional models and maximizing energy harvest in limited space.
Superior Aesthetics: The all-black, grid-free surface offers a sleek and modern appearance, seamlessly integrating with any architectural design and enhancing the visual appeal of installations.
Enhanced Reliability and Durability: The back-contact design, combined with a corrosion-resistant aluminum frame, significantly reduces the risk of micro-cracks and hotspots, ensuring exceptional performance and longevity in harsh environmental conditions.
Lower Levelized Cost of Energy (LCOE): Higher power density reduces the number of modules, inverters, and mounting structures required, lowering the balance of system (BOS) costs. This results in a lower LCOE compared to leading competitors, maximizing return on investment (ROI).
Consistent Performance Under Partial Shading: Half-cell technology and the All Back Contact (ABC) design ensure consistent energy output even in partial shading conditions, minimizing power loss in variable sunlight scenarios.
Globally Recognized Quality: Backed by CE, TÜV, and UL certifications, you can trust in its compliance with the most stringent international safety and quality standards for complete peace of mind.
