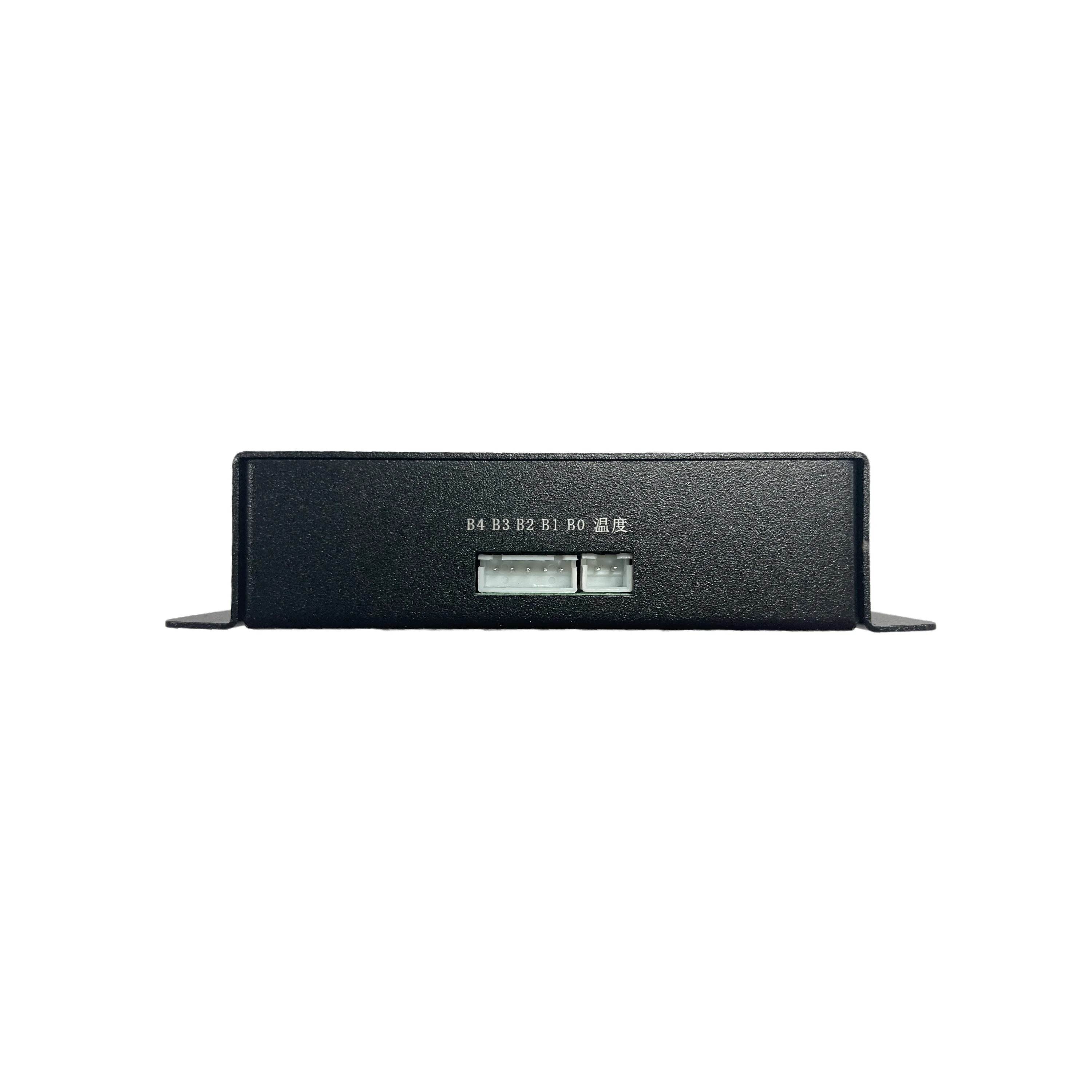

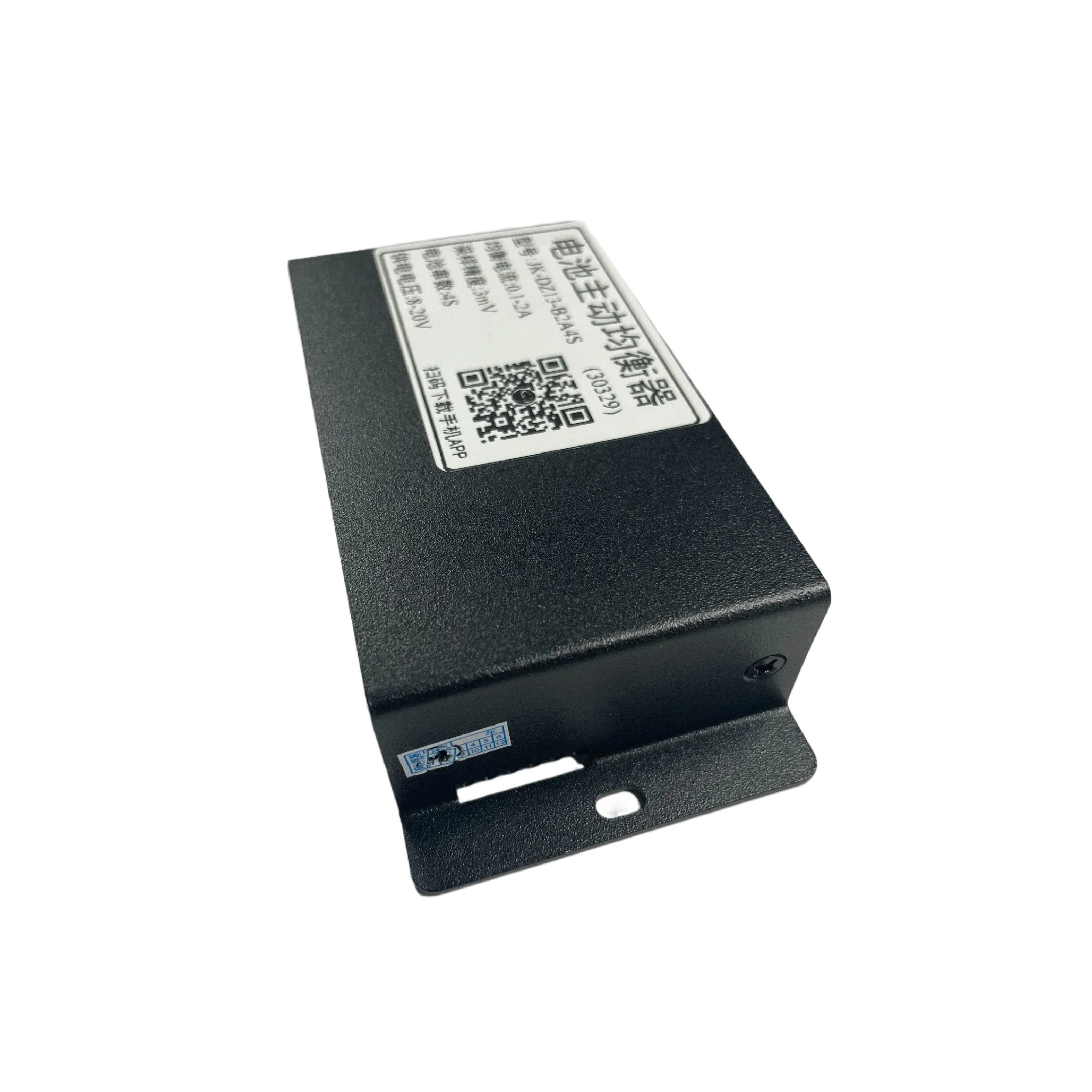

JK BMS 1A 2A Smart Active Equalizer Balancer with Bluetooth
Optimize Battery Performance for Li-ion, LiFePO4 & LTO
$71.57$36.99
I. Product Overview
The 1A 2A Smart Active Equalizer Balancer is designed to keep battery packs balanced, protected, and performing at their best. It supports seamless compatibility with Li-ion, LiFePO4, LTO batteries, and super capacitors, ensuring long-lasting battery health. The device can be managed via a user-friendly Bluetooth app and is suitable for maintaining solar storage systems, RV batteries, DIY battery packs, and other scenarios.
II. Product Parameters and Specifications
Parameter | Details |
|---|---|
Compatible Devices | Li-ion batteries, LiFePO4 batteries, LTO batteries, super capacitors |
Supported Configurations | 4S-24S battery packs; expandable to 28S, 32S, 36S, etc. via cascading |
Single-Cell Voltage Measurement Range | 1V - 5V (with ±3mV accuracy) |
Balance Current Options | Adjustable independently (0.1A, 1A, 2A, 5A, 10A) |
Post-Balancing Inter-Cell Voltage Difference | ≤ 3mV |
Connectivity | Bluetooth (compatible with JIKONG BMS app for iOS, JK BMS app for Android) |
III. Standard Configuration and Core Components
(Note: The original content does not explicitly list standard configurations. The following is inferred based on functional descriptions.)
Core components include:
1 x 1A 2A Smart Active Equalizer Balancer main unit (with active balancing and voltage monitoring modules)
Bluetooth module (for connectivity with mobile apps)
Internal components for energy transfer, resistance detection, and self-protection functions
IV. Product Advantages
Precision Active Balancing for Extended Battery Life
Uses real-time energy transfer to balance cells, resulting in an inter-cell voltage difference of ≤ 3mV after balancing. This eliminates uneven cell wear and ensures long-lasting battery health.Ultra-Wide Compatibility
Works with 4S-24S battery packs and supports expansion to 28S, 32S, 36S, and beyond via cascading. It is compatible with multiple battery types (Li-ion, LiFePO4, LTO) and even super capacitors, making it a versatile tool for various energy storage systems.Accurate Monitoring and Flexible Adjustment
Measures single-cell voltages from 1V to 5V with ±3mV accuracy, providing reliable data for battery status tracking.
Allows independent adjustment of balance current (0.1A to 1A/2A/5A/10A) to match specific battery needs, regardless of cell voltage differences.

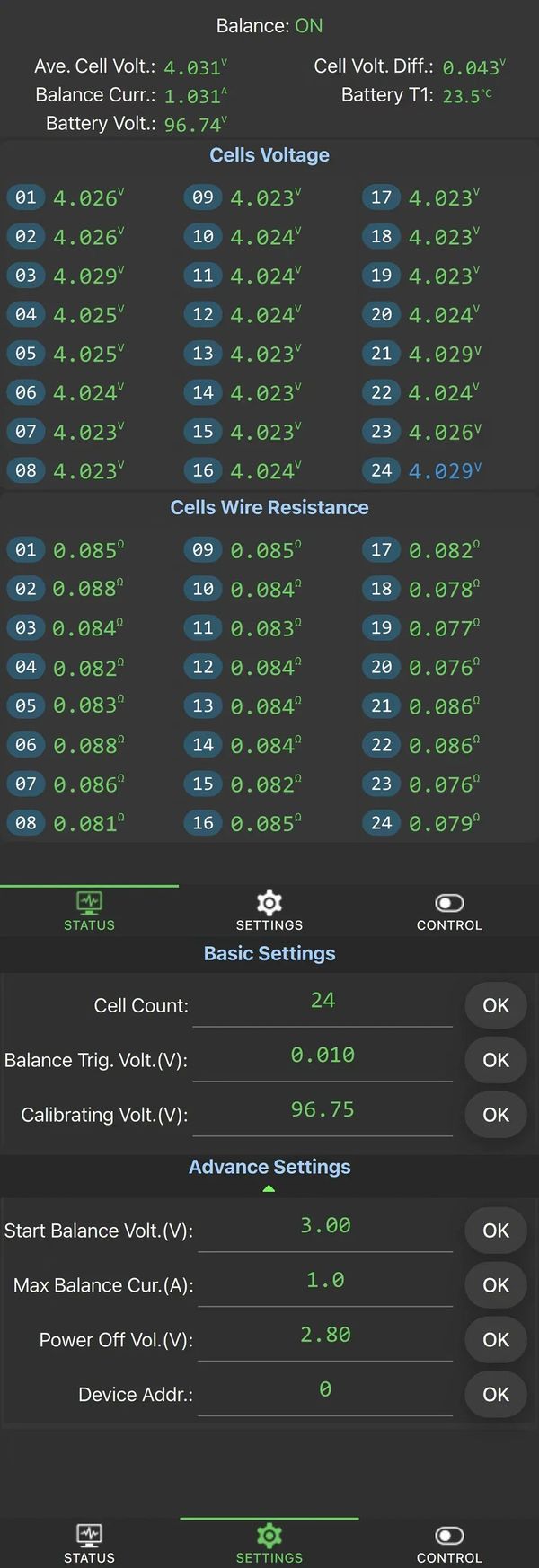

Convenient Bluetooth Control
Connects via the JIKONG BMS app (iOS) or JK BMS app (Android), enabling real-time monitoring of cell status, balance progress, and setting adjustments directly from a phone. This user-friendly interface simplifies operation for all users.Smart Protection for Safe Operation
Features equilibrium line resistance detection to identify contact issues early, preventing potential failures. Additionally, robust self-protection ensures the equalizer won’t burn out even in unexpected scenarios, enhancing overall safety and durability.
